Material: Q195 low carbon steel wire
Wire Gauge: BWG4 ~ BWG25
Wire Diameter: 6mm ~ 0.5mm
Tensile Strength: 300~500 N/mm2
Elongation: 8% - 15%
Process: Wire Rod → Drawn Wire → Annealed → Wire Coiling→Packing
Annealing:
Different wire thickness require different temperature and annealed time, we can control it according customer`s requirements, make the wire soft or hard.
Feature:
Our black annealed wire with good elasticity and flexibility, can control it's degree of hardness and softness in the annealing process.
Package:
1.Bind with wire

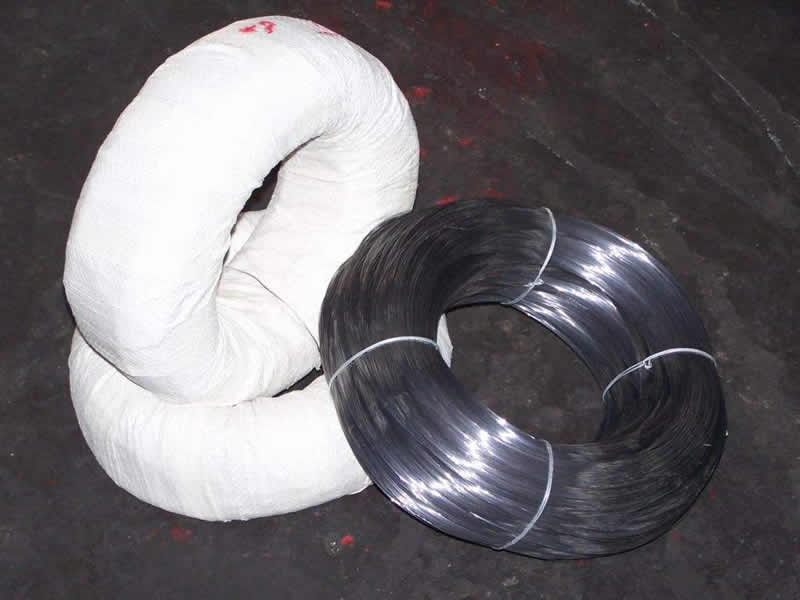

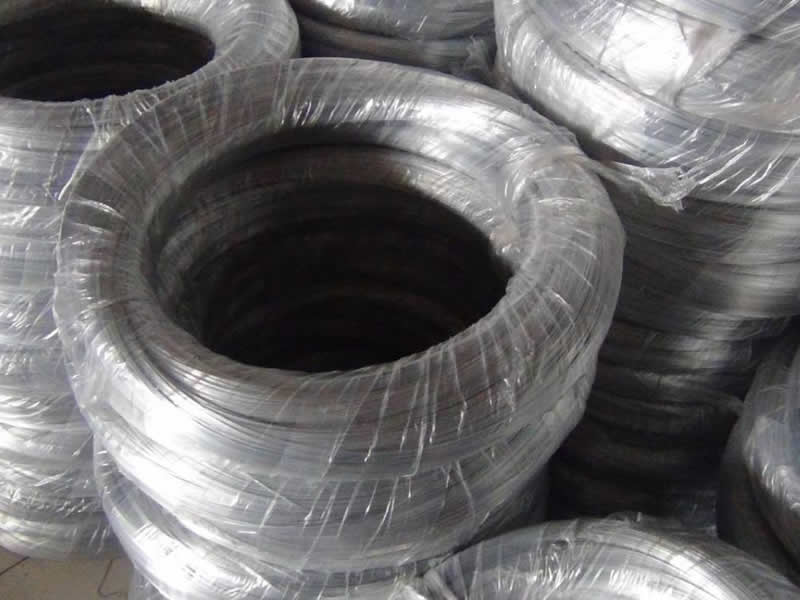

2.Plastic film inside and hessian cloth /woven bag outside
3.Carton
4.Other packing according customer`s requirement.
Weight of coil: 0.1-1000kg/coil, can be make as customers’requirement.
Application: Black annealed iron wire mostly used as binding wire in construction, tie wire or baling wire in building, parks and daily binding.
| Sizes of Black Annealed Wire |
| Wire Gauge | SWG in mm | BWG in mm | In Metric System mm |
| 8# | 4.06 | 4.19 | 4.00 |
| 9# | 3.66 | 3.76 | - |
| 10# | 3.25 | 3.40 | 3.50 |
| 11# | 2.95 | 3.05 | 3.00 |
| 12# | 2.64 | 2.77 | 2.80 |
| 13# | 2.34 | 2.41 | 2.50 |
| 14# | 2.03 | 2.11 | - |
| 15# | 1.83 | 1.83 | 1.80 |
| 16# | 1.63 | 1.65 | 1.65 |
| 17# | 1.42 | 1.47 | 1.40 |
| 18# | 1.22 | 1.25 | 1.20 |
| 19# | 1.02 | 1.07 | 1.00 |
| 20# | 0.91 | 0.89 | 0.90 |
| 21# | 0.81 | 0.813 | 0.80 |
| 22# | 0.71 | 0.711 | 0.70 |
| 23# to 34# also available for black annealed wire. |
